MarMac TWINPUFF
Cleaner Fruit.
Better Coverage. Easier Operation.
​

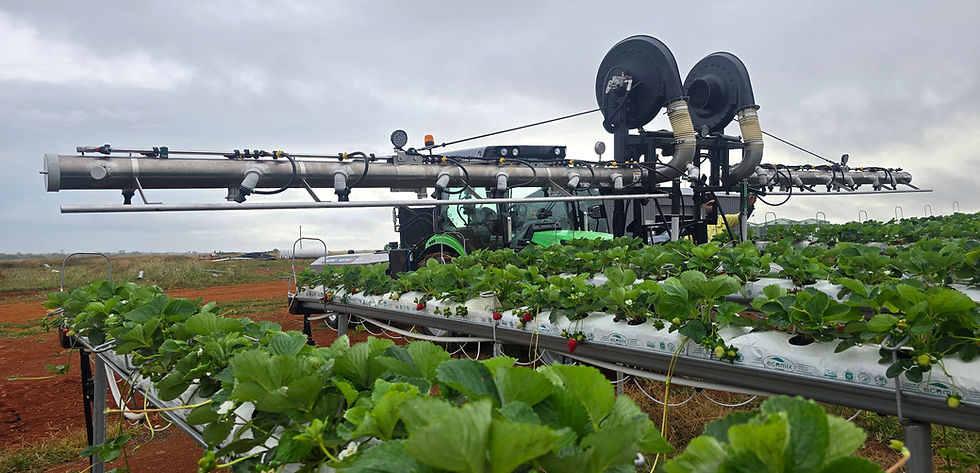

Marshall Machinery proudly introduces the latest-generation Marmac TWINPUFF Tabletop Strawberry Sprayer — engineered specifically for modern strawberry production in both poly tunnel and open-field applications.
​
Built from years of industry experience and extensive grower feedback, the new TWINPUFF delivers outstanding spray coverage, greater operator comfort, improved safety, and lower long-term operating costs.
​
Whether you’re targeting hanging fruit, dense canopy growth, or nursery runners, the Marmac TWINPUFF gives growers the flexibility and precision needed to adapt throughout the season.​​​
Why Growers Are Choosing the MarMac TWINPUFF:
-
Quick and easy nozzle angle adjustment
-
TwinPuff dual-fan system delivers exceptional spray coverage
-
Excellent penetration through dense crop canopies
-
Optional droppers can be fitted in minutes for upward and cross-flow targeting of hanging fruit
-
Multi-angle spray application targets both strawberry fruit and foliage effectively
-
End nozzles can be easily fitted to spray adjacent leg rows in tight tunnel configurations
-
Lightweight boom design improves tractor stability and handling
-
High-capacity 450 L/min hydraulic chemical pump
-
Venturi agitation system ensures consistent chemical mixing throughout the tank
-
High-performance spray system designed for minimal maintenance
-
PTO shaft remains straight during turns, reducing driveline stress
-
Trailing linkage-hitched design provides excellent manoeuvrability
-
Heavy-duty construction built for durability, reliability and low maintenance requirements
​
Engineered for Modern Strawberry Farming:
The Marmac TWINPUFF has been developed to meet the increasing demands of Australia’s berry industry.
With a revolutionary boom design, spray nozzles can be repositioned in seconds using virtually unlimited angle and rotational adjustment. This allows operators to accurately target the crop as canopy structure changes through the season.
​
The advanced hydraulic fan and chemical delivery system provides highly consistent airflow and droplet size for exceptional coverage while maintaining efficient chemical application rates.
​
Different droppers can also be fitted where required, making the machine ideal for:
-
Tabletop fruiting crops
-
Nursery runner applications
-
Hanging fruit targeting
-
Variable canopy management
Available Models:
Marmac TWINPUFF 1500
-
1,500L stainless steel tank
Marmac TWINPUFF 2000
-
2,000L stainless steel tank
-
Supplied standard with Bravo 180S Auto Rate Controller
Front-Mounted Boom System
-
Latest Marmac left & right strawberry boom design
-
High-efficiency nozzle orientation system
-
Optimised airflow and droplet coverage
-
6 chemical droppers standard
-
Hydraulic boom lift and folding
-
Breakaway boom protection system
-
Central tilt pivot system
-
Category 2 three-point linkage mounting
-
Diagonal support stay mounting points
-
Parking stands for boom storage
Hydraulic Fan System
-
Twin hydraulic fan assemblies
-
One fan per side position
-
Mounted on outer swinging sprayer chassis
Hydraulic Requirements
-
2 x 90L/min = 180L/min @ 200 Bar
Stainless Steel Tank & Power Pack
-
Stainless steel chemical tank
-
Heavy-duty axle assembly
-
Tight-turning tow hitch
-
Three-point linkage-mounted hydraulic power pack
-
PTO-driven hydraulic pump system
-
Twin hydraulic oil pumps and gearbox
-
130L hydraulic oil tank
-
Hydraulic relief valves
-
Hydraulic suction and return filters
-
12VDC hydraulic oil cooler
Chemical System
-
Hydraulically driven chemical pump
-
Electric pressure control
-
Electric section valves
-
Electric left/right fan controls
-
Venturi agitator system
-
Chemical suction filter with isolation valve
-
Pressure chemical filter
-
Cam lock fill point
-
Tank drain tap
-
Tank level sight glass
-
20L hand wash tank​
-
​​Pump output of 450L/min flow at 4.1 Bar pressure
-
56.8L/min hydraulic flow required
Control, Safety & Tractor Integration
​The Marmac TWINPUFF has been engineered to deliver simple operation, improved operator comfort, and outstanding reliability in demanding strawberry production environments.
Control System Features
-
Electric chemical controls
-
Electro-hydraulic boom control system
-
Cabin-mounted controls
-
Adjustable cylinder speed control
-
Bravo 180S Auto Rate Controller standard on 2,000L model
​
Recommended Tractor Package
Marshall Machinery recommends pairing the Marmac TWINPUFF with the latest Deutz-Fahr DF 5115 tractor for maximum performance and operator comfort.
Key features include:
-
Automatic variable TTV transmission
-
Single-touch joystick controls
-
Precise machine handling
-
Category 4 pressurised cabin system for improved operator safety
The sprayer can also be fitted to a wide range of suitable tractor makes and models.
​
Built for Safety & Reliability
The Marmac TWINPUFF trailing tank features an exceptionally low centre-of-gravity design for improved stability and safer operation in demanding conditions.
Its hydraulic power pack is mounted directly to the tractor’s three-point linkage, eliminating PTO angle issues while turning and improving long-term reliability and machine longevity.
