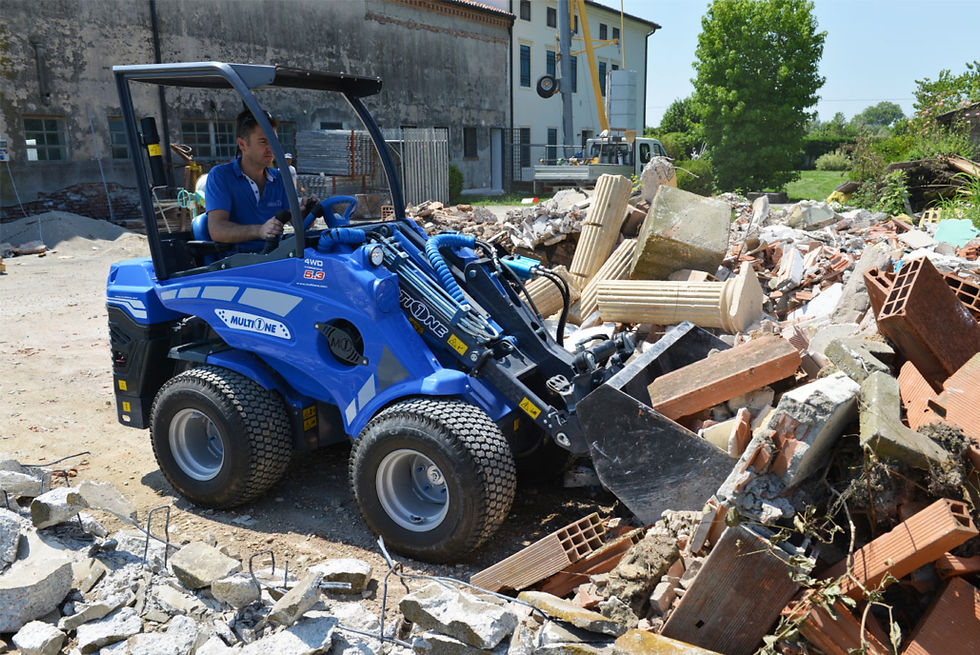

Multione Series 5
MultiOne 5 Series compact articulated mini loaders offer a winning combination of performance and low operating costs. No compromise between performance, power, economy, innovation, technology and design.
The telescopic boom combined with the compact size makes the 5 Series the right choice for anyone who needs boom outreach coupled with great agility in narrow spaces: from the DIY to the demanding professional.
The new 5.3 K model is equipped with the Kubota D1305 – 3 cylinders – 1300 cc. engine. It meet the emission requirement for UE and US without hassle of electronic controls or any exhaust treatment.
The particular Multione setup make the engine deliver high torque at low revs giving many advantages to Multione hydraulic controls and circuits with a smooth, reactive and consistent power output.
The new configuration offers: 30% more torque and 20% more flow output for the attachments.
This mean much more power when it is needed, a smooth and constant power delivery at low rpm and the best attachments performance.
- Telescopic boom
- Compact dimensions
- Low operating cost
- Multi function joystick (5.3K)
- 50 l/min (13.2 GPM) output flow (5.3K)
- Big Block – 1300 cc displacement – Kubota engine (5.3K)
- Stage V and Tier 4 Final emission compliant (5.3k)
- Low emission (5.3k)
- Low noise
- Big tires available
5.2K Compact Loader
Tipping Load: 1110 kg
Power: 25 hp
Torque: 55 Nm @ 2400 rpm
Speed: 14 km/h
Hydraulic Flow Rate: 36 l/min
Lift Height: 2.75 m
Pushing Force: 900 kgf
Weight: 1020 kg
5.3K Compact Loader
Tipping Load: 1290 kg
Power: 25 hp
Torque: 85 Nm @ 1700 rpm
Speed: 12.5 km/h
Hydraulic Flow Rate: 50 l/min
Lift Height: 2.75 m
Pushing Force: 900 kgf
Weight: 1070 kg
